Descriere

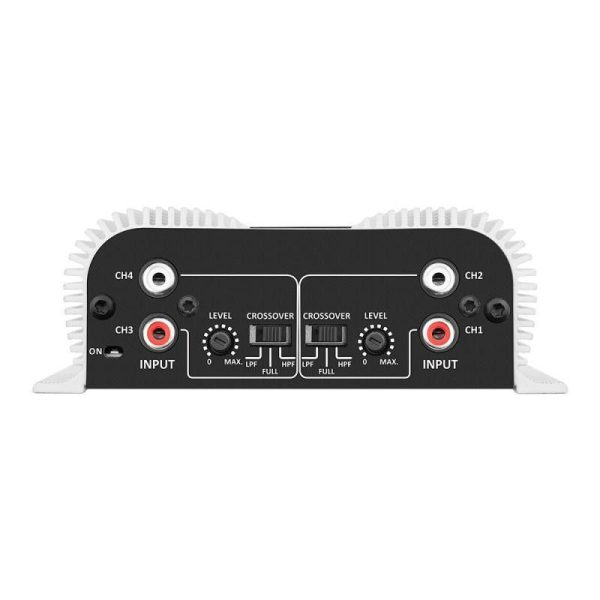

AMPLIFICATOR TS 400X4 2 OHM
TS 400×4 este proiectat cu cele mai înalte performanțe pentru a se potrivi cu majoritatea tipurilor de sisteme audio auto. Este multi-canal, cu 4 canale de 100 Watt RMS, cu o putere maxima de 400 Watt RMS la 2 ohmi. TS 400×4 este un amplificator FULL RANGE. Dispune de protecție termică și la scurtcircuit, plus indicator LED și crossover.
Detalii Tehnice
| Operation class | Class D |
|---|---|
| Number of Channels | 04 |
| Maximum power | @ 13,8 VDC – 2 OHMS – 400 W RMS (4 x 100W RMS) @ 13,8 VDC – 4 OHMS – 252 W RMS (4 x 63W RMS) Bridged @ 13,8 VDC – 4 OHMS – 400W RMS (2 x 200W RMS) |
| Input Sensitivity | 200mV (Vol = max.) |
| Signal to Noise Ratio | > 90dB |
| Frequency Response | (Full Range): 18 Hz to 30 kHz (-1dB) |
| Crossover high pass (HPF) | 90 Hz (-12dB/8th) |
| Crossover low pass (LPF) | 90 Hz (-12dB/8th) |
| Input Impedance | 22K ohms |
| Output Impedance | 2 ohms |
| protection system | Thermal and Output Short |
| Min. Supply Voltage | 8 VDC |
| Maximum Power Supply Voltage | 16 VDC |
| Consumption at rest | 0.8A |
| Maximum music consumption | @13,8VDC: 16.5A |
| Maximum consumption in sinusoidal signal | @13,8VDC: 33A |
| Dimensions (WxHxD) | 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm) |
| Weight | 1.322 lbs (0.6 kg) |
| EAN | 7898556840682 |
