Descriere

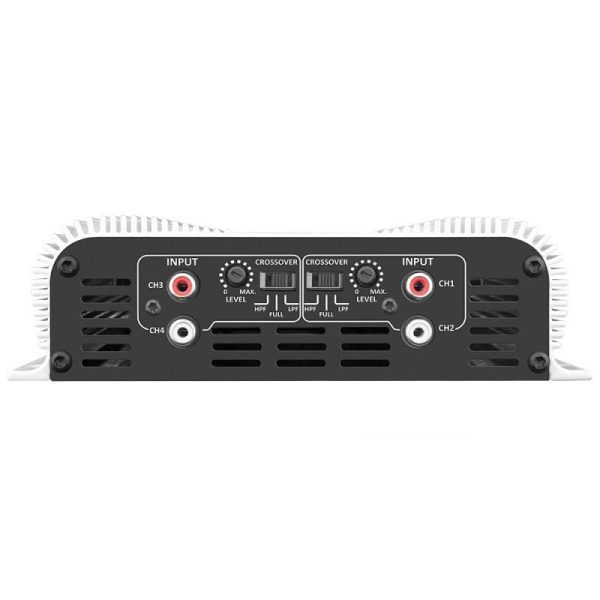

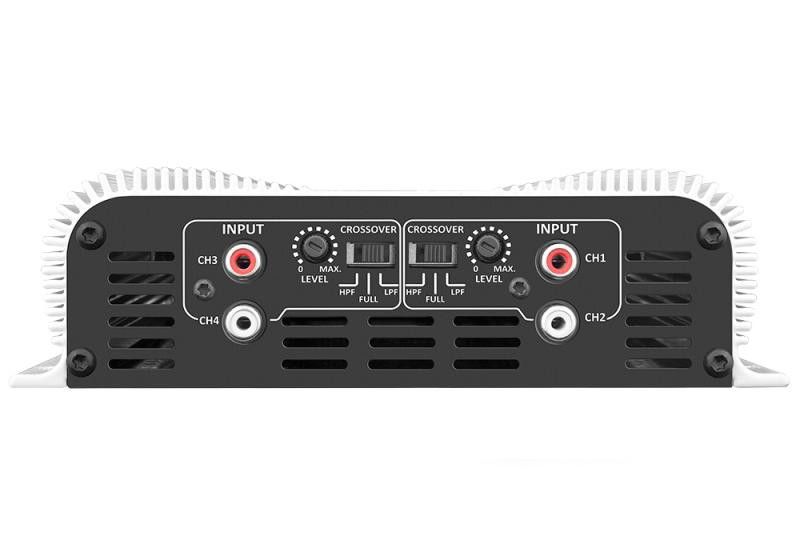

AMPLIFICATOR DS 1200X4 2 OHM
DS 1200×4 este sinonim cu amplificatorul multi-canal. Are 4 canale de 300 Watt RMS, cu o putere maxima de 1200 Watt RMS, la 2 ohmi si este compatibil cu orice frecventa, adica este un amplificator FULL RANGE. Versatilitate, eficiență și calitate într-un singur produs.
Detalii Tehnice
| Operation class | D |
|---|---|
| Number of Channels | 04 |
| Maximum power | @ 12.6 VDC – 2 OHMS: 1200W RMS (4 x 300W RMS) @ 12.6 VDC – 4 OHMS: 768W RMS (4 x 192W RMS) |
| Input Sensitivity | 250mV |
| Signal to Noise Ratio | >88dB |
| Frequency Response | 9Hz to 27KHz (-3dB) |
| Crossover high pass (HPF) | 90Hz (-12dB/8a) Fixed |
| Crossover low pass (LPF) | 90Hz (-12dB/8a) Fixed |
| Input Impedance | 18K Ohms |
| Output Impedance | 2 Ohms |
| protection system | Output overload |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 1.8A |
| Maximum music consumption | @12.6VDC 67.5A |
| Maximum consumption in sinusoidal signal | 135A |
| Dimensions (WxHxD) | 7.17′ x 2.05′ x 11.06′ (182 x 52 x 281mm) |
| Weight | 4.62lb (2,1kg) |
| EAN | 7898556844130 |
